Gas Pressure Depletion and Seismicity

Boulder, Colo., USA: Europe’s largest gas field, the Groningen field in the Netherlands, is widely known for induced subsidence and seismicity caused by gas pressure depletion and associated compaction of the sandstone reservoir. Whether compaction is elastic or partly inelastic, as implied by recent experiments, is key to forecasting system behavior and seismic hazard.

In their study published in Geology, Berend Verberne and colleagues sought evidence for a role of inelastic deformation through comparative microstructural analysis of unique drill-core, recovered from the seismogenic center of the field in 2015, 50 years after gas production started, versus core recovered before production (1965). Quartz grain fracturing, crack healing, and stress-induced Dauphiné twinning are equally developed in the 2015 and 1965 cores, with the only measurable effect of gas production being enhanced microcracking of sparse K-feldspar grains in the 2015 core.

Interpreting these grains as strain markers, Verberne and colleagues suggest that reservoir compaction involves elastic strain plus inelastic compression of weak clay films within grain contacts.

FEATURED ARTICLE
Drill core from seismically active sandstone gas reservoir yields clues to internal deformation mechanisms
Berend A. Verberne; Suzanne J.T. Hangx; Ronald P.J. Pijnenburg; Maartje F. Hamers; Martyn R. Drury; Christopher J. Spiers
CONTACT: Suzanne Hangx, s.j.t.hangx@uu.nl, Utrecht University, Dept. of Earth Sciences, Utrecht.
Paper URL: https://pubs.geoscienceworld.org/gsa/geology/article/doi/10.1130/G48243.1/593344/Drill-core-from-seismically-active-sandstone-gas

GEOLOGY articles are online at http://geology.geoscienceworld.org/content/early/recent . Representatives of the media may obtain complimentary articles by contacting Kea Giles at the e-mail address above. Please discuss articles of interest with the authors before publishing stories on their work, and please make reference to GEOLOGY in articles published. Non-media requests for articles may be directed to GSA Sales and Service, gsaservice@geosociety.org.

https://www.geosociety.org

# # #

For Immediate Release
4 January 2021
GSA Release No. 21-01

Contact:
Kea Giles
+1-303-357-1057

clay in grain
Clay in grain boundary: A sectioned quartz-quartz grain contact revealing a thin clay film (ribbon-like structure). Compaction and shear of these thin clay films has played a key role in controlling compaction of the Groningen gas reservoir to date. Microstructure obtained by B.A. Verberne.

cracked feldspar grain
Cracked feldspar grain between quartz grains: Feldspar grain (center, light grey) compressed between two stronger quartz grains (mid-grey). Elastic deformation of the quartz grain framework, plus compaction and shear of clay films trapped in load-bearing grain contacts, is inferred to lead to fracturing of weaker K-feldspar grains. Microstructure obtained by B.A. Verberne.

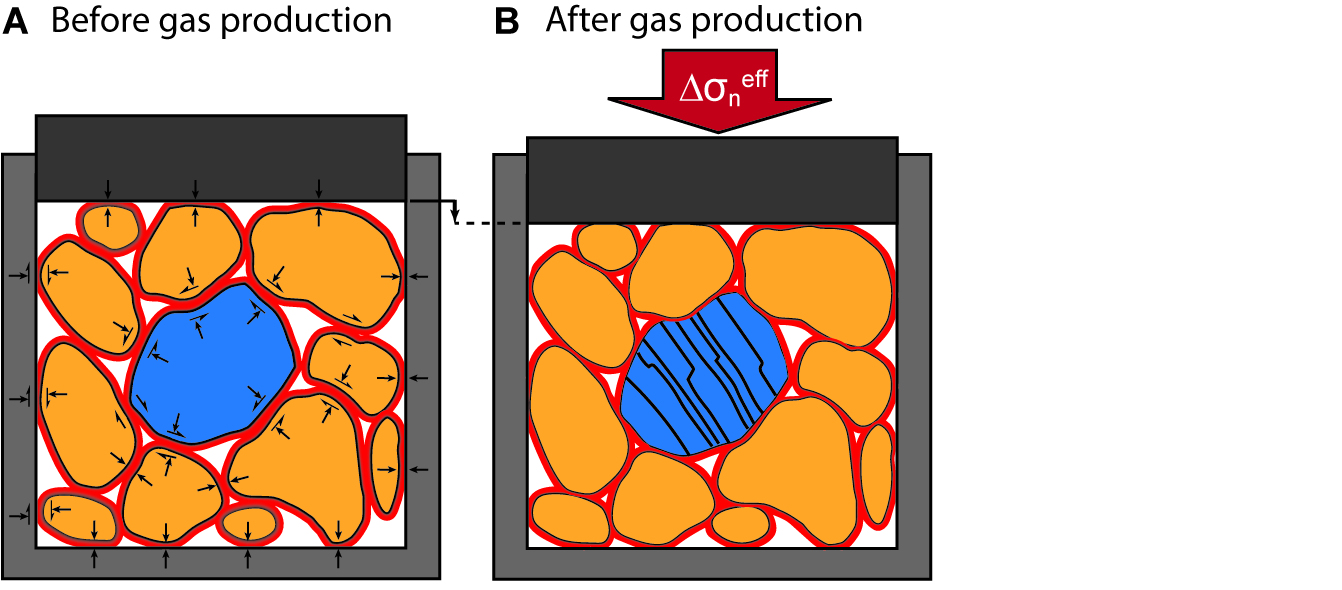

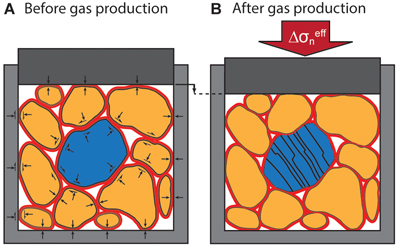

conceptual model
Conceptual model: Idealized volume of reservoir sandstone undergoing vertical compaction with zero horizontal strain, typical of producing gas reservoirs. Note, in this simplification, all grain surfaces are coated with uniform clay films. In a real sandstone reservoir, clay films are discontinuous and locally absent, especially in distal regions of the field (orange—load-supporting quartz framework; blue—sparse feldspar grains; red—clay films). The conceptual model was developed by B.A. Verberne, S. Hangx, and C. Spiers.
